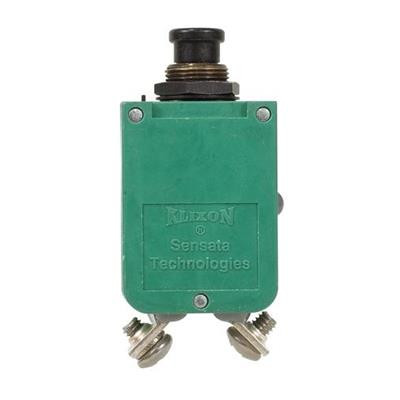

Product Description
- Body Style: Single Pole Type
- Bushing Length: 0.235 Inches Minimum And 0.265 Inches Maximum
- Body Length: 1.094 Inches Maximum
- Body Width: 0.750 Inches Maximum
- Case Material: Metal
- Center To Center Distance Between Terminals Parallel To Length: 0.673 Inches Minimum And 0.735 Inches Maximum
- Fragility Factor: Moderately Rugged
- Mounting Surface To Terminal End Distance: 1.840 Inches Maximum
- Pole Quantity: 1
- Mounting Facility Type And Quantity: 1 Threaded Bushing W/Panel Seal
- Storage Type: General Purpose Warehouse
- Thread Quantity Per Inch: 32
- Maximum Continuous Load Current Rating Per Pole: 25.0 Amperes Ac Single Location And 25.0 Amperes Dc Single Location
- Operating Voltage Type And Rating Per Pole In Volts: 115.0 Ac Single Location And 28.0 Dc Single Location
- Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 3500.0 Ac Single Location And 6000.0 Dc Single Location
- Circuit Protection Type: Overcurrent Single Location
- Trip Release Method: Thermal Single Location
- Trip Release Characteristic: Time Delay Single Location
- Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 138.0 Single Location
- Reset Method: Manual
- Main Contact Tripping Mechanism Type: Trip Free
- Manual Actuator Type And Quantity: 1 Push-Pull
- Actuator Function: Trip-Reset
- Actuator Position Designation: At Pole One
- Internal Trip Release Configuration: Series Trip Single Location
- Nominal Thread Size: 0.469 Inches
- Trip Delay Time In Seconds Per Rated Continuous Current: 15.000 Minimum At 200 Pct Single Location And 55.000 Maximum At 200 Pct Single Location
- Inclosure Protection Type For Which Designed: Hermetically Sealed And Shock Resistant And Vibration Resistant
- Trip Release Ambient Temp Rating: 25.0 Deg Celsius Nominal Single Location
- Frequency In Hertz: 400.0 Single Location
- Unpackaged Unit Weight: 1.813 Pounds
- Test Data Document: 81349-Mil-C-5809 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Series Designator: Uns
- Terminal Type And Quantity: 2 Tab W/Screw
- Specification/Standard Data: 96906-MS25244 Government Standard
