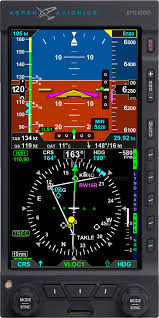

Product Description
Item Description
- Backup attitude indicator not required
- An attitude indicator and directional gyro (DG) in a single display
- Autopilot compatibility interfaces to the new TruTrak Vizion Autopilot
- Compatible with most legacy autopilots
- Includes Global Positioning System (GPSS) Steering
- Includes attitude heading reference system (ADAHRS)
- Large, 6.0″ diagonal, 400 x 760 pixel TFT Active Matrix LCD screen
- Rechargeable lithium-ion external backup battery with up to two hours of battery life
- Works with your panel’s existing avionics
- Unique form-fit design slides easily into existing panel cutouts
- Provides a path for removal of vacuum instruments
- Evolution E5 Non-TSO STC to full TSO Evolution 1000 Pro upgrade path
Versatile Performance – presents attitude information with altitude, airspeed, vertical speed plus DG/CDI course deviation indicator into a single display with a backup battery. Includes Global Positioning System (GPSS) Steering, and attitude heading reference system (ADAHRS)
Flexible installation options – the E5 is approved for IFR flight when installed with a panel mounted IFR GPS. When installed without a panel mount GPS the E5 is approved for VFR flight only.
Reliable - With redesigned electronics and new glass, the Evolution E5 has a bolder and brighter display and offers higher reliability, more capability and increased processing speed all while retaining Aspen’s unique form factor design that keeps installation costs down
Affordable and easy to purchase – real glass for under $5K and available through aviation retailers
Compatible – works with your panel’s existing avionics
Autopilot – interfaces to the new TruTrak Vizion Autopilot and is compatible with most legacy autopilots (Optional ACU and EA100 may be needed depending upon autopilot type.)
Simple Installation – the unique form-fit factor design slides into existing panel—one install does it all
Upgradeable – affordably upgrade to the Pro MAX and add other features such as ADS-B, Angle of Attack, Synthetic Vision and Hazard Awareness with an easy upgrade path that leverages your Evolution E5 investment without unit replacement
Smart Investment – increases aircraft value, situational awareness
Always Configurable. Always Affordable. Always Upgradeable.
Backup attitude indicator not required
Consolidates traditional attitude indicator and directional gyro (DG) into a single display
Autopilot compatibility interfaces to the new TruTrak Vizion Autopilot
Compatible with most legacy autopilots
Includes Global Positioning System (GPSS) Steering, and attitude heading reference system (ADAHRS)
Large, 6.0" diagonal, 400 x 760 pixel TFT Active Matrix LCD screen with bolder/brighter resolution
Rechargeable lithium-ion external backup battery with up to two hours of battery life
Works with your panel’s existing avionics
Unique form-fit design slides easily into existing panel cutouts
Provides a path for removal of vacuum instruments*
PFD Upgrades
Easy and affordable Evolution E5 Non-TSO STC to full TSO Evolution 1000 Pro upgrade
* In most circumstances. Actual vacuum instrument removal will vary by aircraft.
Specifications
General Specifications:
Overall Dimensions 3.50” W x 7.00”H x 4.15”D
Weight 2.9 lbs. with mounting bracket
Display Type 6.0” Diagonal TFT Active Matrix LCD
Display Resolution 400x760
Display Backlight High Intensity White LED
Display Colors 16M
Operational Specifications:
Operating Temp -20°C to +55°C
Storage Temp -55°C to +85°C
Max Operating Altitude (unpress.) 35,000 ft.
Cooling Integral Fan
Max Humidity 95% at 50°C
Input Voltage +9 to +32 Volts DC
Max Current 2.4 Amps @ 28 Vdc / 4.8 Amps @ 14 Vdc
I/O Specifications:
ARINC 429 Inputs 5 Low Speed
ARINC 429 Outputs 1 Low Speed
RS-232 Inputs 5
RS-232 Outputs 3
Pitot / Static Quick Connect
Certification Specifications:
Software
RTCA DO-178B Level C
Environmental
RTCA DO-160E
